HORTIDRIVE 3.6

Technical data:

  • Engine power: 0.5kW
  • Hydraulic power pack: 2.0kW
  • Batteries: Acid or Gel
  • Maximum platform height: 3615mm
  • Minimum: platform height 425mm
  • Dimensions: working platform 390x1750mm
  • Maximum working platform load: 200 kg
  • Length: 1911mm
  • Width: 830mm
  • Height: 2052mm
  • Lifting speed: 17 seconds

Applied modifications and improvements:

  • Foldable step on the back of the trolley
  • Switches and buttons made of steel – the improvement affects the service life,
  • Rubber separators between scissors to protect against varnish damage,
  • Tilt sensor informing the user about the loss of stability or deviating from the vertical position,
  • Valve that allows you to adjust the speed of lowering the platform
  • The sound and light system of the control panels indicates improper use of the trolley,
  • Silent hydraulic power pack,
  • New maintenance-free gel batteries,
  • New chargers with the option of monitoring the battery charging process,
  • New contactless potentiometer resistant to water, dust and shock,
  • New induction foot switch resistant to water, dust and shock,
  • Increased overall water resistance of the trolley,
  • Product description:

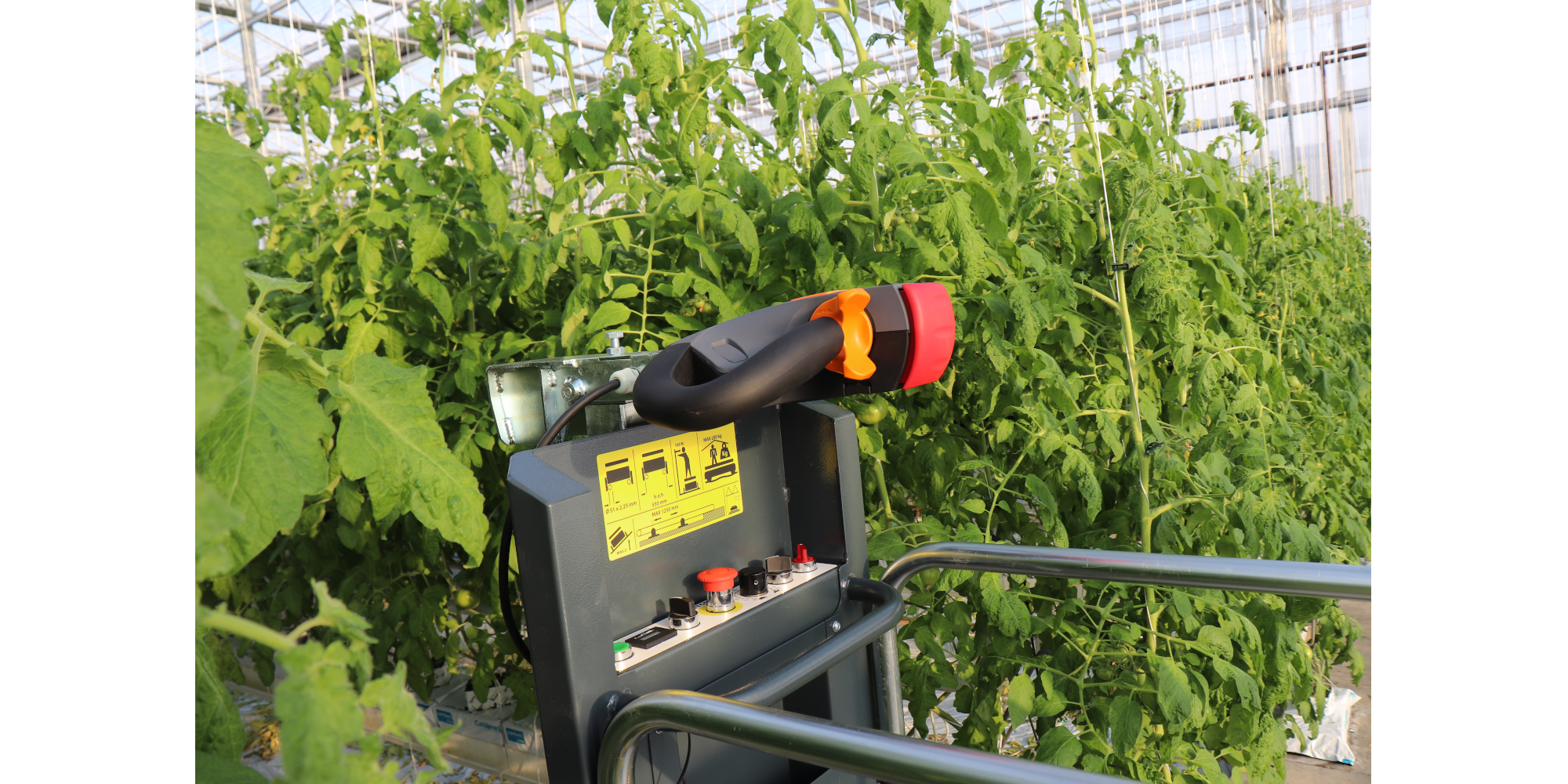

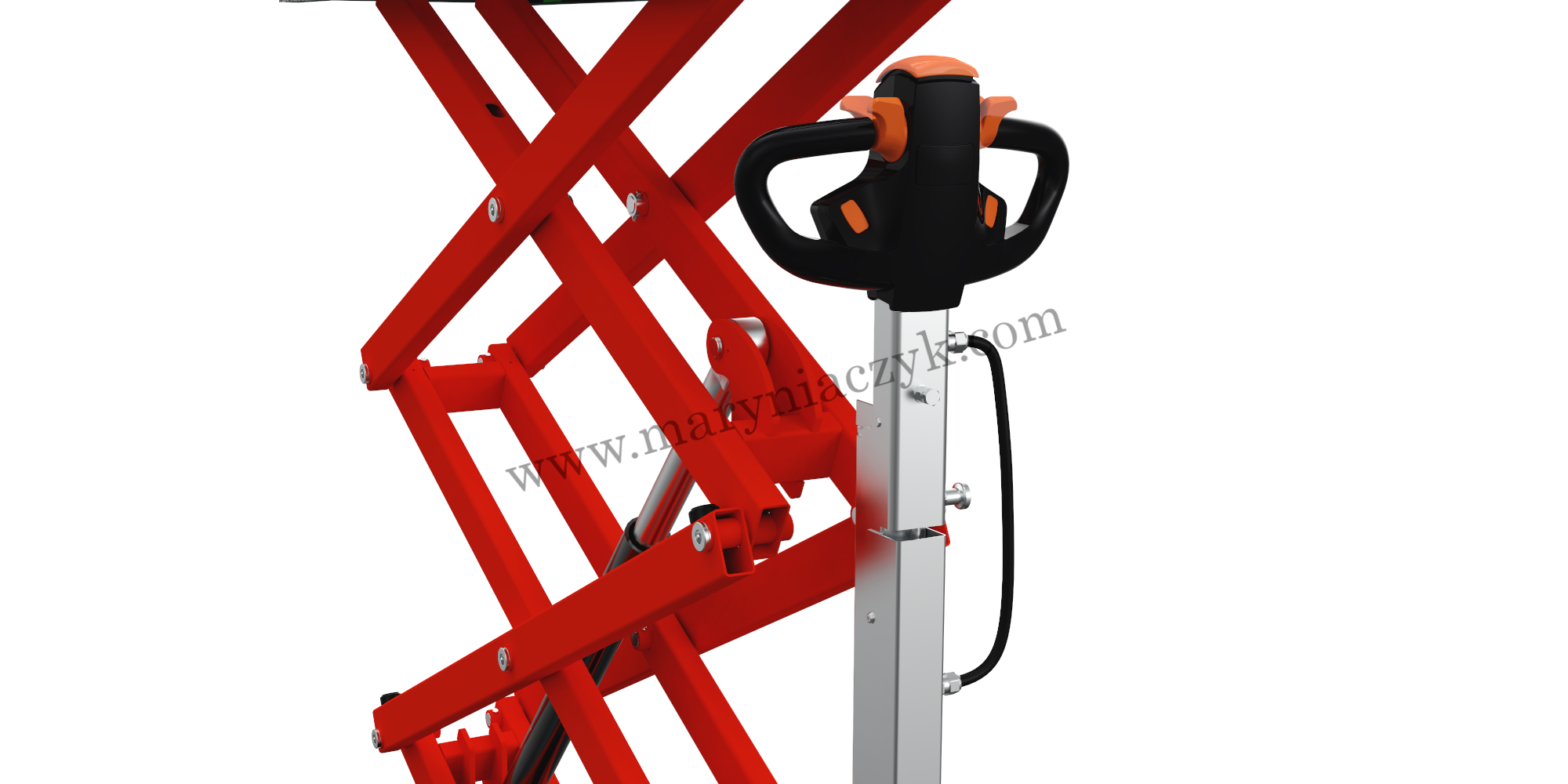

    Hortidrive 3.6 is a new product designed for the care of plants grown in a greenhouse. The multifunction steering wheel used on the front of the device allows you to move around the heating pipes and the concrete connector of the greenhouse without having to leave the work platform of the trolley.

    The greenhouse trolley was introduced to the offer in July 2020 and includes all the innovative solutions offered by the FPHU Maryniaczyk manufacturer.

    We will start the description of the product with its base – the lower frame of the greenhouse trolley, the design of which ensures a high level of safety for the user through high stability when moving on the heating pipes, the use of light and sound systems informing about the battery charge status or a tilt sensor informing the user about the loss of stability or tilting away from the vertical position. The rounded corners of the lower frame change the overall design of the trolley and protect the plants from damage.

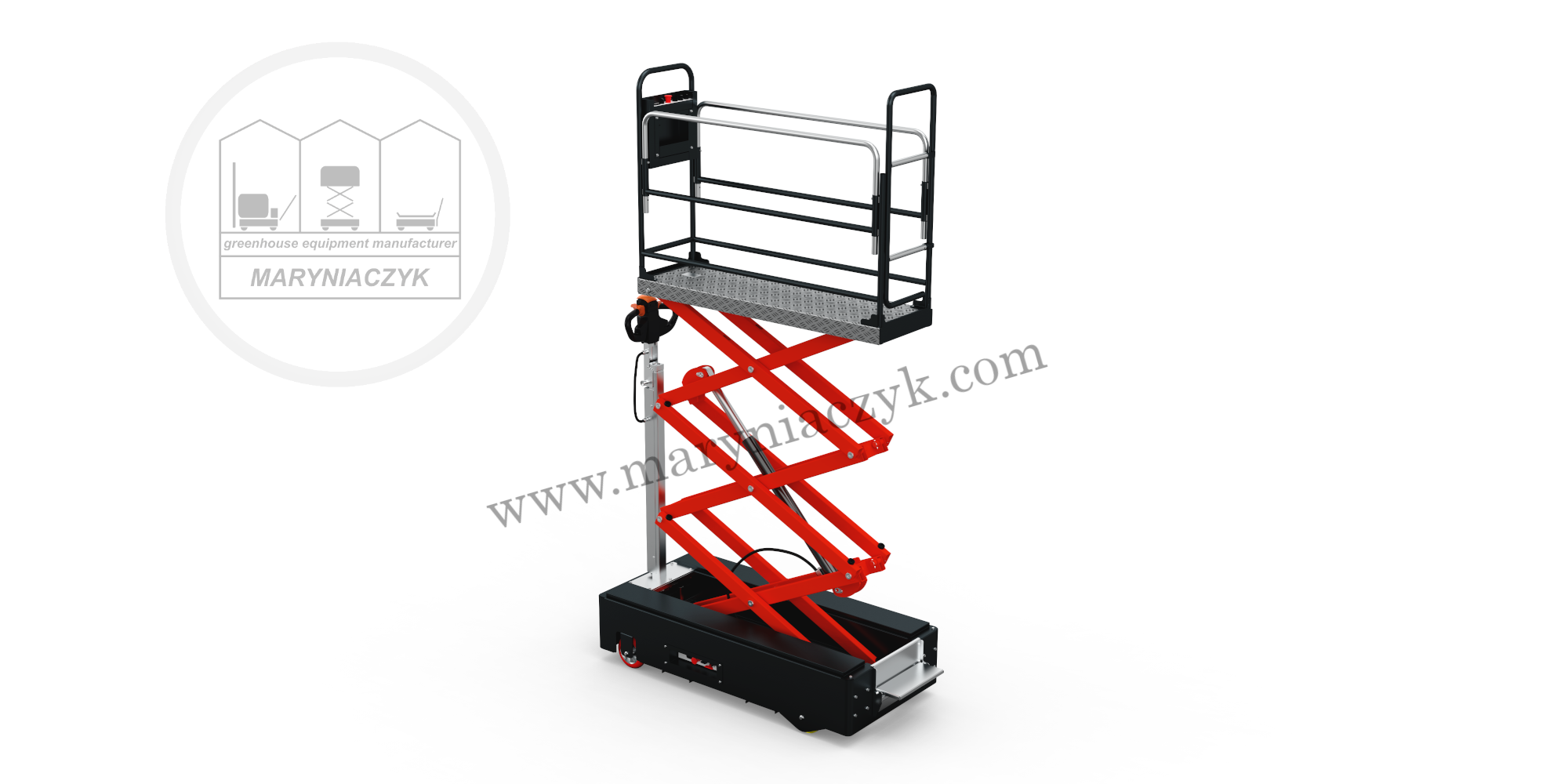

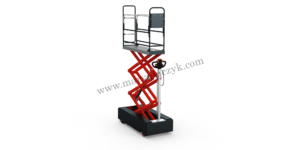

    The working platform is mounted on a three-shear hydraulic system. The speed of lifting the platform is adjustable. A number of applied solutions ensure quiet and comfortable operation.
    The doors of the railings on the front and rear of the trolley are secured with a lock increasing the security level of Hortidrive 3.6. The control panel is appropriately marked, which ensures intuitive work with the device.
