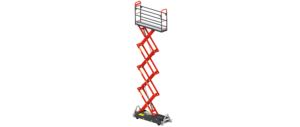

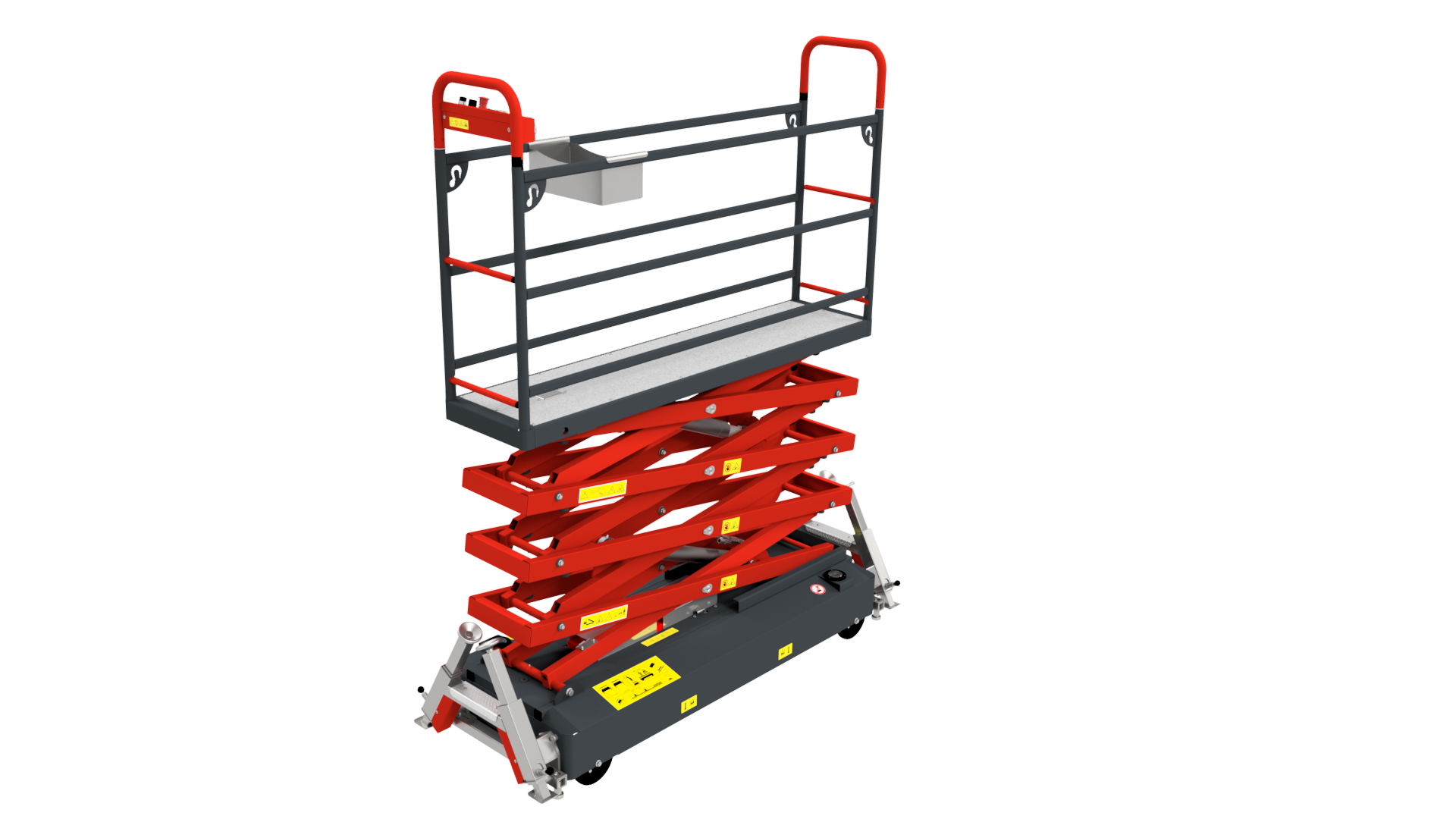

Hortitech 4HD 6.00

Technical data:

• Motor power 0,5kW
• Hydraulic power pack: 2.0 kW
• 2x110Ah battery (6PZF 110) C5 110Ah C20 150Ah
• Maximum platform height 5600mm
• Minimum platform height 740mm
• Dimensions of the working platform 440x1900mm
• Maximum working platform load of 200 kg
• Length 2240mm
• Width 750mm
• Weight 610kg
• Lifting speed up to 6m 25 sec.

Product description:

Hortitech 4HD 6.00 was designed for service work in tall greenhouses. The trolley uses modern drive and hydraulics of reputable manufacturers, which ensures long and trouble-free operation. The device has four scissors and two hydraulic cylinders that raise the working platform to a height of 6m and a system of four manually extendable stabilizers that are necessary when working at a height of 6m. The trolley has security systems such as a tilt sensor to prevent the truck from tipping over, and platform lifting blockades due to incorrectly extended stabilizers or too high tilt to one side, the PLC controllers supervise all systems. Optional Turbo button allows the truck to move at a speed of 105 m/min.

When the stabilizers are retracted, platform only rises to a height of 3m and allows moving on pipes so that it can be used as a care trolley, but when stabilizers are pulled out, the trolley automatically immobilizes the drive and there is a possibility of lifting up to 6m – this ensures a high level of employee safety.
