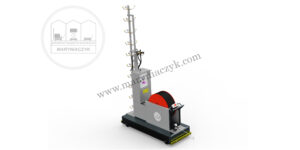

Hortispray (2)

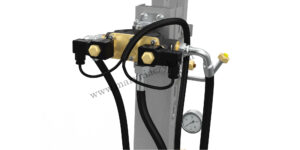

Hortispray (1)

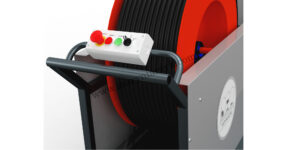

Hortispray (3)

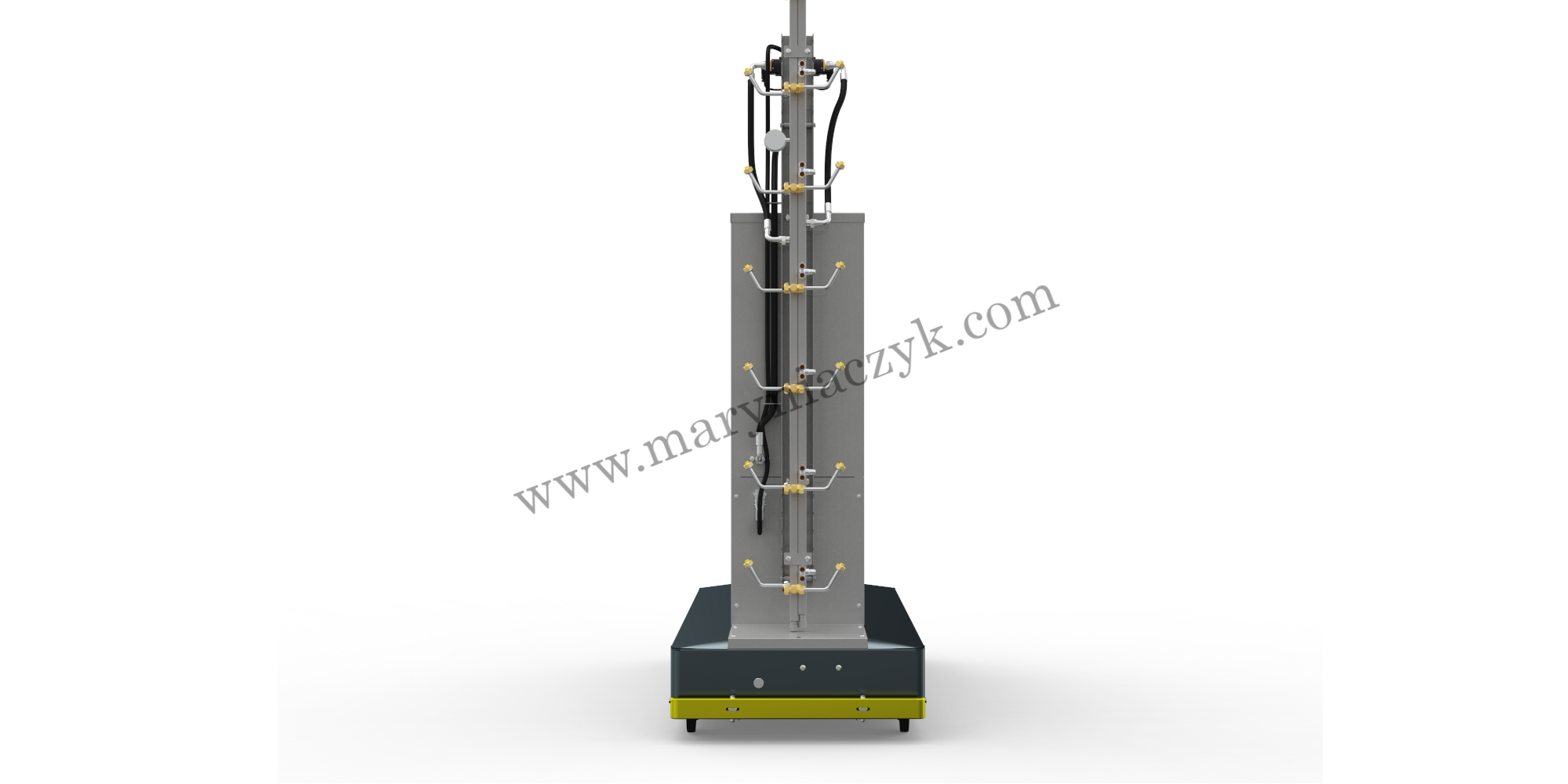

Hortispray (6)

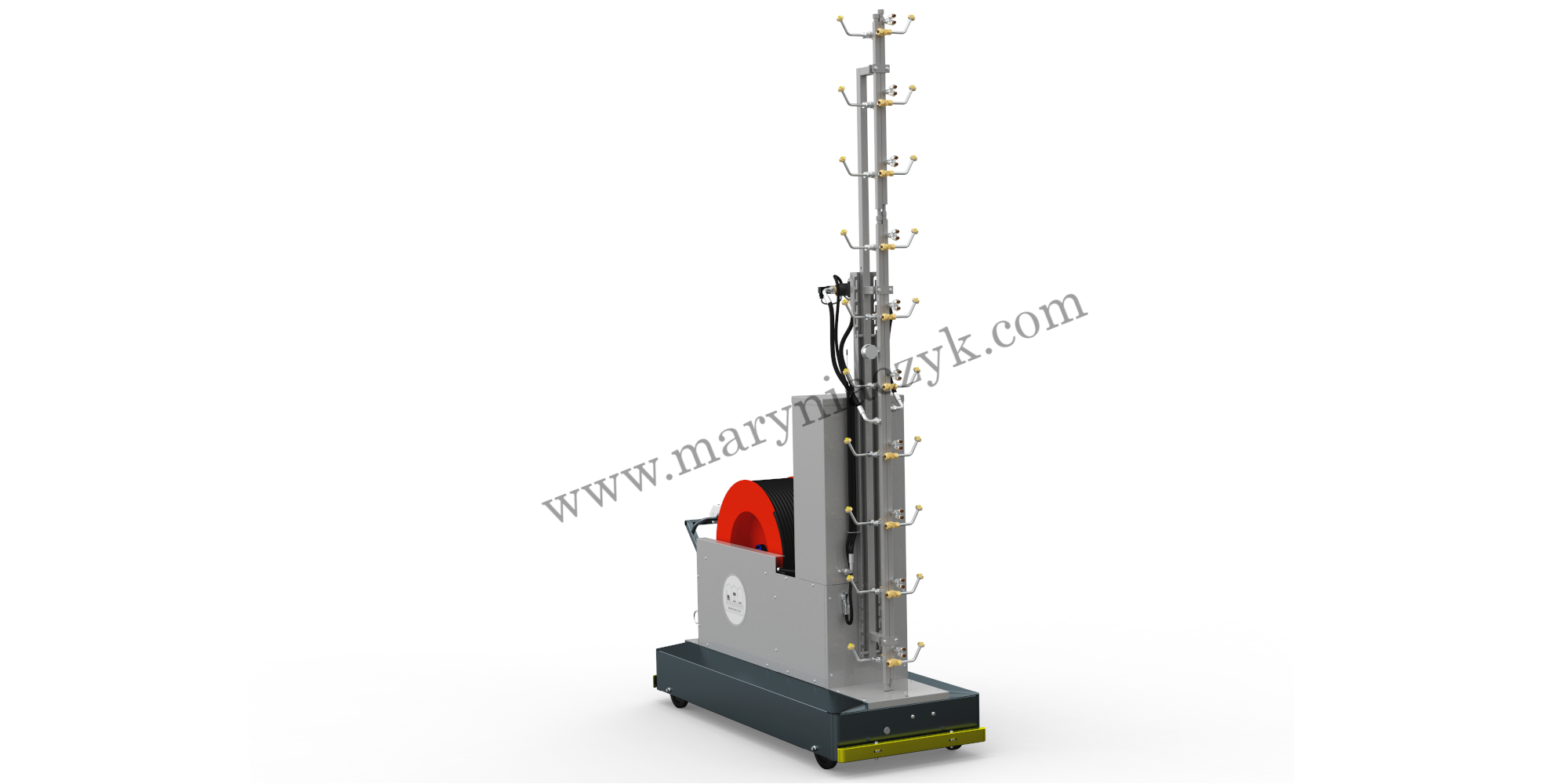

Hortispray (5)

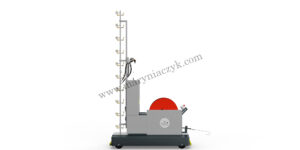

Hortispray (4)
Hortispray (2) Hortispray (1) Hortispray (3) Hortispray (6) Hortispray (5) Hortispray (4)

Hortispray – Automatic greenhouse sprayer with a hose reel

Technical data:

  • Sprayer dimensions 1700×700
  • Weight 280 kg
  • Motor power 0.5kW
  • Hose reel motor power of 0.14kW
  • Working pressure 40bar
  • The maximum lenght of hose is 200m
  • Menus in PL, ENG, FR, RUS

Product description:

Automatic greenhouse spraying machines by FPHU Maryniaczyk. Sprayer with a hose reel “Hortispray” is intended for spraying greenhouse plants growing at height. Two spraying bars up to 3m high (one spraying the end of the row, the other spraying the plants on both sides) equipped with nozzle heads for adjustment and individual setting of the spray liquid stream. The device moves on a suitable track with heating pipes in the greenhouse, is equipped with a hose reel, depending on the version, the machine is able to roll up a 200m hose. The modern drive system of the trolley and rolling machine ensures full synchronization during operation of the device and the batteries used, working time up to 9 hours. The batteries are charged by a microprocessor charger that controls the charge status and prevents overcharging. The trolley chassis has been equipped with a row changing system, the wheels are pulled out hydraulically by pressing a button and the entire device is controlled by a PLC controller, which allows you to set the route, speed, turn on the appropriate spray bar while driving, control over the battery charge status informing about upcoming discharge and counts the number of hours worked. The greenhouse spraying machines can be equipped with a battery charging station that allows you to charge the battery without stopping the device during this operation.
